Scraper recycling sand blasting room

If the machine is not suitable for your workpiece, please tell us the following infromation:

What kind of workpiece will you clean?

What is the maximum size of the workpiece? (length, width and height)

What is the maximum weight of the workpiece?

What is the cleaning efficiency required?

According to your infomation, the most suitable machines will be designed for your workpieces.

Get a quote

Click Here to View a working video of the ANTAI Scraper recycling sand blasting room


The sand blast room is composed of the blasting chamber, air blaster, Abrasive recovery system (scraper mechanical recycling way),screw conveyor, bucket elevator, air wash separator, abrasive feeding system, illumination system, dust collector, trolley system and electric control system.

The sand blasting room is a kind of nonstandard machine equipment and is suitable for surface and inner chamber of large structural parts, box castings, large castings, widely used in ship industrial, military and construction machinery , petrochemical machinery, hydraulic machinery and bridge components , machinery and other locomotives of large metal structures, suitable for sand-blasting and shot peening front surface coating strengthening treatment .

Relying on compressed air as power source, the steel shots are accelerated by the blasting pot to spraying on the surface of work pieces to achieve the purpose of cleaning. After sandblasting able to completely remove the workpiece surface welding slag , rust , oxide skin , oil, etc. , to improve the surface adhesion of the coating to achieve long-term preservation purposes. Furthermore, for shot peening treatment, the surface stress of the workpiece can be eliminated to improve the strength of the workpiece

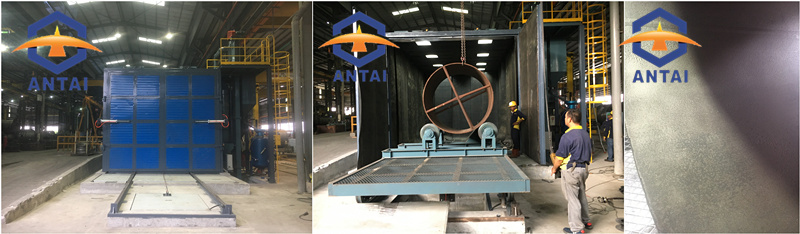

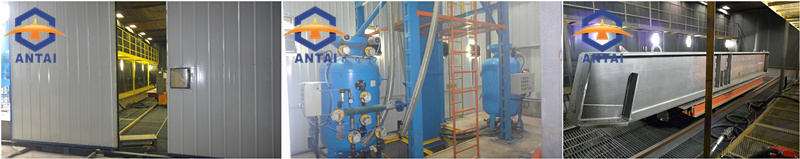

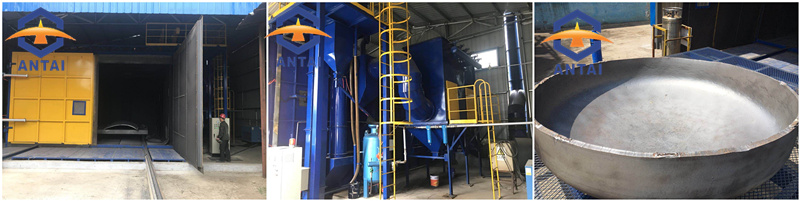

Project pictures

喷砂房 拼图4.jpg

喷砂房 拼图6.jpg喷砂房 拼图5.jpg
